Driveshaft help needed; QUICK!

#1

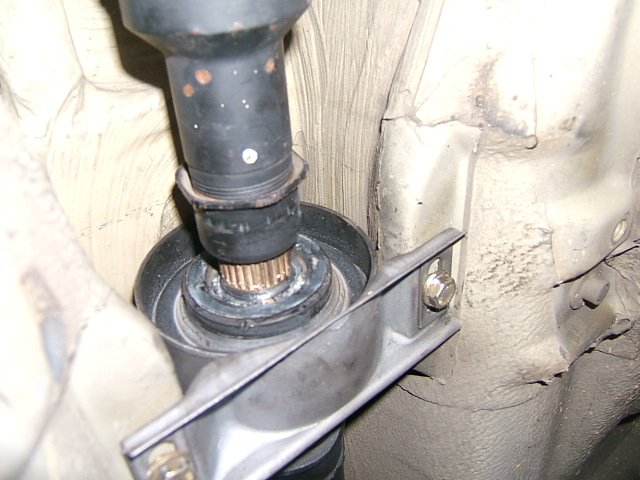

Nitin and I are trying to button up the underside of his car. Is this the right orientation for the driveshaft/center support bearing on a 325i?

We don’t want to put the heatshields/exhaust on until we have the driveshaft perfect.

Thanks

#2

Looks right - although I am not sure if I see circlip there or not. Installed circlip should face back of the car. Don’t forget to preload the CSB and put some moly grease on the splines.

HTH,
Igor

#3

Circlip is in place, and we got the CSB preloaded, I’m pretty sure we have it sorted. Atleast I hope so!
Exhaust, rear swaybar, brakes and everything else will hopefully be finished tomorrow so he can test out the Spec suspension next week at Rd. Atlanta!

I noticed the Ireland front bar no longer has a ‘void’ at the ends where water can collect and spew corrosion back out, looks nice.

Thanks for the tips!
